Model 288 System WASAG
Manual Film Application

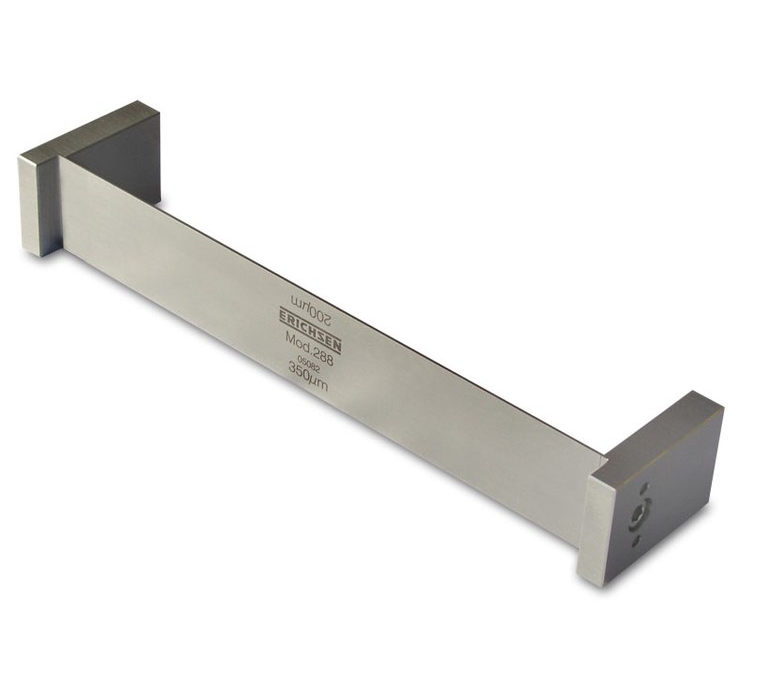

The Models 288 and 360 are doctor blades with fixed gap heights, selectable between 15 and 2000 μm. The Model 288 is equipped with two applicator edges and the model 360 with four applicator edges, so that a corresponding number of theoretical layer thicknesses can be applied with one device. Both blades are corrosion resistant. All versions of the Models 288 and 360 are delivered with a manufacturer’s test certificate M according to DIN 55 350-18, which contains the following information: Gap heights (nominal/actual comparison), flatness and roughness of the film applicator edge, roughness, test equipment used with calibration stand, product marking, date, name of tester.
