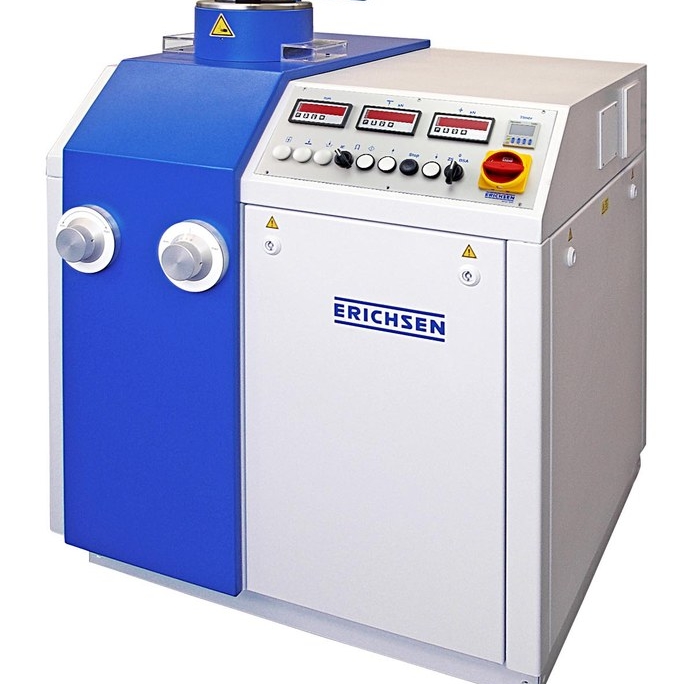

Model 212

Lacquer and Paint Testing Machine

Fully automatic cupping and deep-draw testing machine for testing the ductility of coated ferrous and non-ferrous metals (such as coil coatings, painted, plastic-coated or galvanized materials). The testing machine is electro-hydraulically driven, has a maximum pulling force of 100 kN, and features digital displays for the pulling force, the blank (sheet) holding force and the drawing stamp path. During the production of thermo-formed products, the materials are deformed along all three coordinate planes. In order to avoid any subsequent corrosion damage, the surface coating must not be damaged. For the standard checks and verifications required for quality control, the Model 212 is well suited for cupping and deep-draw tests in the sheet thickness range of 0.1 mm to 3.0 mm.

Norms

  • DIN EN ISO 1520
  • DIN EN 13523-6
