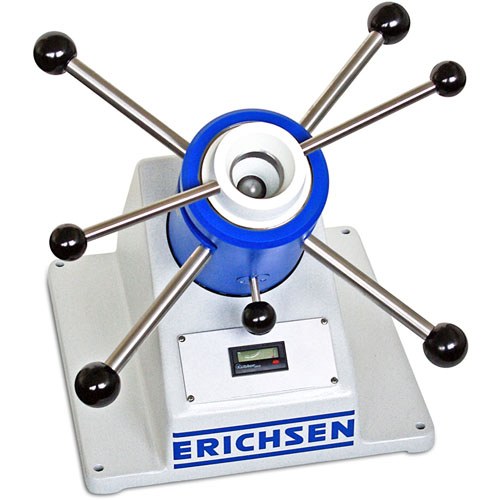

Model 100

Sheet Metal Testing Machine

This hand-operated testing machine is used to determine the deep-draw properties of ferrous and non-ferrous metals. It uses the ERICHSEN deep-draw test on sheets and strips from 0.1 to 1.5 mm thickness (400 N/mm² tensile strength) as well as on foils with a minimum thickness of 0.005 mm. This machine is easy to use so it is well suited for use in facilities requiring low levels of sheet metal forming for thinner materials.


  • ISO 8490
  • EN 14-58
  • EN 14-67
  • EN ISO 20482
  • JIS Z-2247
