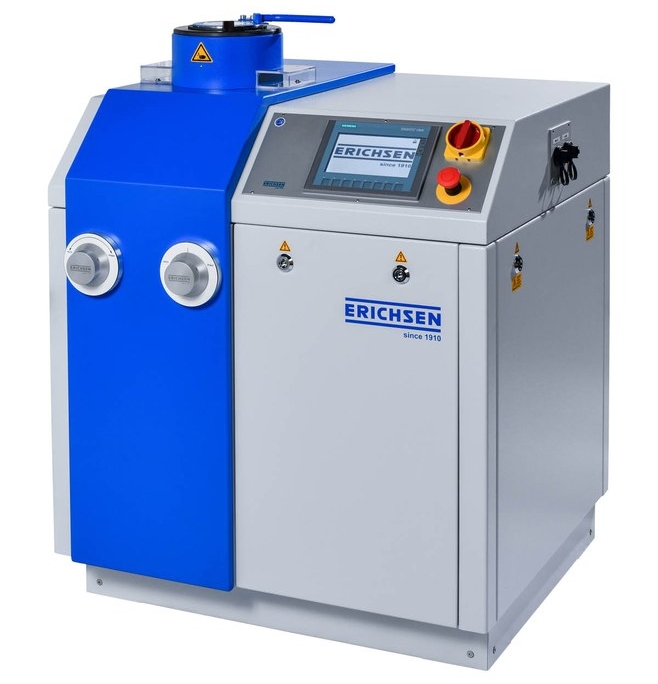

Model 134

Sheet Metal Testing Machine

This sheet metal testing machine enables you to carry out the main, currently known deep-draw test procedures on ferrous and non-ferrous metals in a fast and precise manner. It can carry out these and other technical tests on thin sheet metals. This model is used for the ERICHSEN cupping test and ERICHSEN deep-draw cup test on sheets and strips. Tests can also be carried out in accordance with Olsen specifications (as required in the USA) when the appropriate tools are used. The machine is operated via a resistive touch panel (automatic menu navigation).


  • ISO 8490
  • EN 14-58
  • EN 14-67
  • EN ISO 20482
  • JIS Z-2247
  • DIN EN 1669
  • ISO 11 531
  • JIS Z 2249
  • GB/T 15825
